Electron diffraction takes the wave equation logic from optics and applies it to matter. A crystal supplies regularly spaced planes, so constructive interference requires a path difference \(2d\sin\theta=n\lambda\). The experiment is wave-like because maxima appear only at angles satisfying that condition.
The new ingredient is de Broglie's relation \(\lambda=h/p\). Once an electron beam has momentum \(p\), the equation predicts a wavelength; the diffraction pattern tests whether that wavelength is real. This is why the topic is the bridge from particles to wave mechanics.
A crystal has regularly spaced atomic planes. For suitable electron energies, the electron wavelength is comparable to those spacings, so different reflected paths can interfere.
The experiment asks whether a beam made of particles can produce the same angular selection expected from waves.

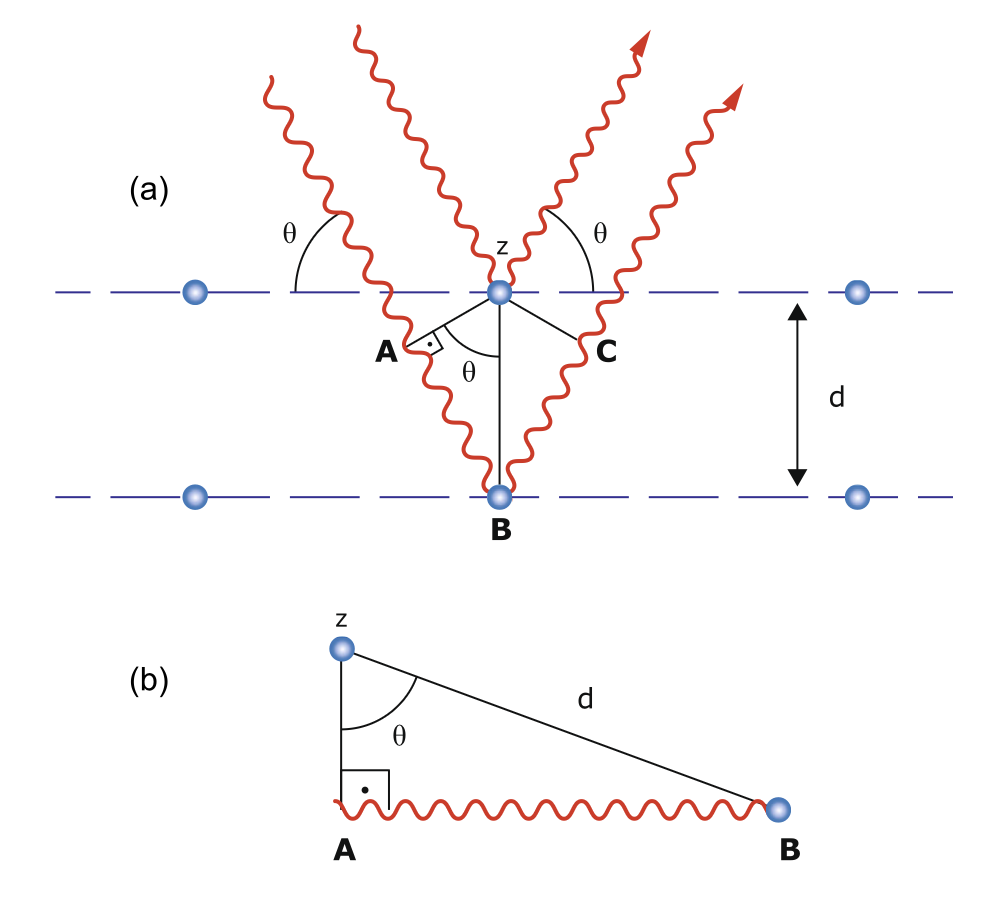

The extra path traveled by one reflected wave relative to a neighboring plane is \(AB+BC\). For the symmetric geometry, each piece contributes \(d\sin\theta\):
The condition is the same wave logic used for X-ray diffraction, now applied to electrons.
If the electrons are accelerated through a voltage \(V\), their nonrelativistic kinetic energy is approximately \(eV=p^2/(2m)\). Thus
Davisson-Germer and related experiments made de Broglie's proposal physically measurable: a beam of particles can carry a wavelength.
Electron diffraction is the mirror image of the photoelectric effect. Light had looked wave-like and then showed particle-like transfer; electrons had looked particle-like and then showed wave-like propagation.
For exercise purposes, electron diffraction should be read as a two-step argument. First, accelerated electrons acquire momentum and therefore a de Broglie wavelength. In the nonrelativistic estimate, the kinetic energy from an accelerating voltage gives
Second, the crystal or thin film plays the role of a diffraction grating. Constructive interference appears only for directions compatible with the spacing of the scatterers.
The point is conceptual as much as numerical: a particle beam produces a wave interference pattern when the experimental geometry is sensitive to wavelengths comparable with atomic distances.
This page is designed to support short guided exercises on: Matter behaving like a wave: diffraction evidence and its connection with de Broglie's idea.
- Use from this page: the definitions, physical setup, highlighted equations and conceptual links needed to start a first calculation or explanation.
- Keep in the book: complete derivations, extended historical discussion, worked solutions and the full textbook narrative remain in the original chapter and linked book resources.
- Good exercise balance: ask the student to identify assumptions, apply one relation, and interpret the result physically, without requiring material not introduced on this page.
Use these anchors to design compact exercises. The exercise should be answerable from this page plus standard algebra, while longer derivations, full worked examples and broader context should point back to the original book.
- Focus: Matter behaving like a wave: diffraction evidence and its connection with de Broglie's idea.
- Conceptual check: state what the main result says physically before using it algebraically.
- Equation: \[AB=d\sin\theta\]
- Equation: \[2d\sin\theta=n\lambda\]
- Equation: \[\lambda=\frac{h}{p}\]
- Boundary: use this page for setup and first-step reasoning; cite the book for longer derivations, complete experimental history or solved-problem detail.
- Typical task: derive, interpret, or apply the relation above to a simple case without introducing topics outside this page.
