The Hydrogen spectrum is the first strong hint that atoms have internal levels. The observation is simple: white light gives a continuum, while Hydrogen gives separated lines. Balmer's formula organizes the visible lines with integers; Rydberg's formula generalizes the pattern as \(1/\lambda=R(1/n^2-1/m^2)\).
The logic is not "memorize the formula"; it is "ask why integers are present." Before Bohr, \(n\) and \(m\) are empirical labels. After Bohr, they become level labels, and each spectral line becomes a transition with photon energy \(hc/\lambda=\Delta E\).

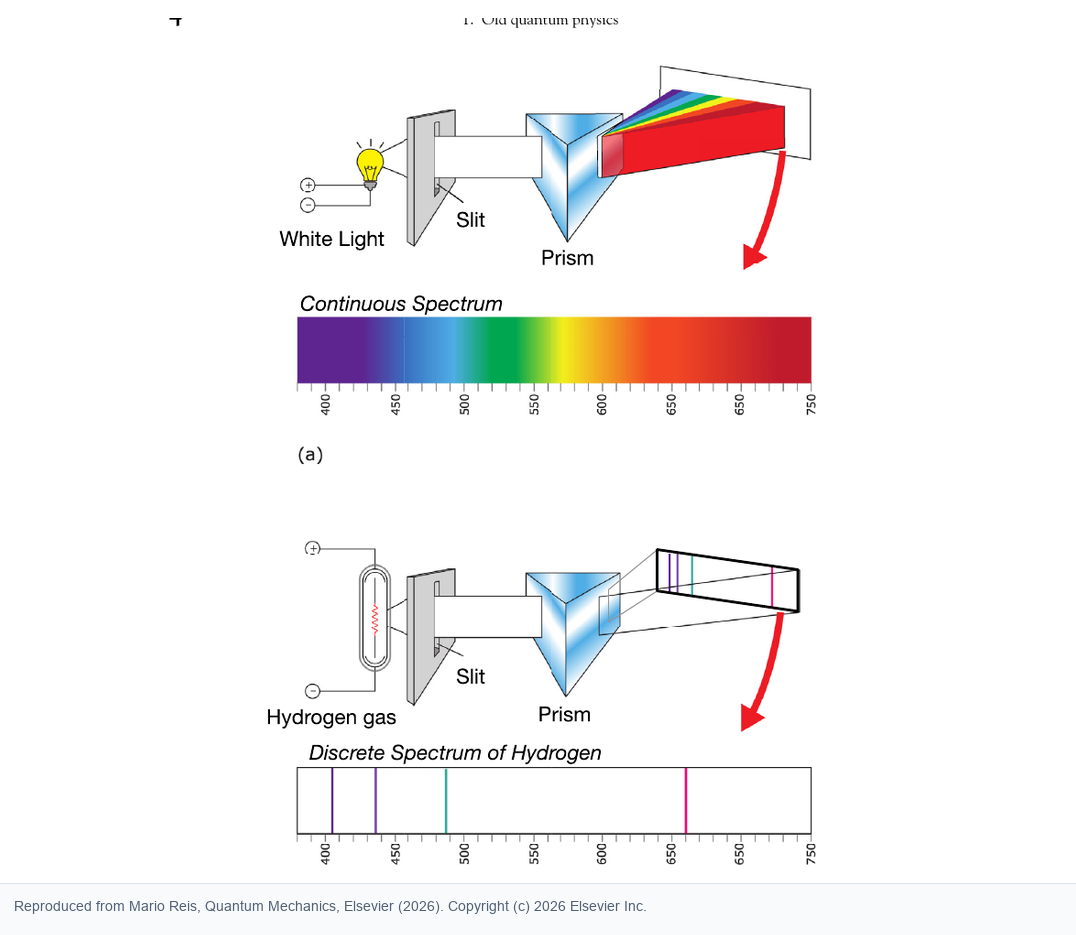

The contrast is the point: a heated solid can produce a broad continuum, while excited Hydrogen emits a structured set of separated lines. The atom is not radiating arbitrary wavelengths.
If light with wavelength \(\lambda\) carries energy \(hc/\lambda\), then each line already suggests an energy difference inside the atom, even before the atomic model is known.
Balmer first organized the visible Hydrogen lines with a formula involving integers. Rydberg rewrote the pattern in the more general inverse-wavelength form:
The integers first appear as empirical labels. Bohr later gives them a physical meaning: they label atomic levels involved in a transition, so \(hc/\lambda=E_m-E_n\).
| Series | Final level | Main region | Meaning |
|---|---|---|---|
| Lyman | \(n=1\) | Ultraviolet | Transitions into the ground level |
| Balmer | \(n=2\) | Visible/UV | Historically decisive visible lines |
| Paschen | \(n=3\) | Infrared | Lower-energy transitions |
| Brackett | \(n=4\) | Infrared | More weakly bound final states |
The formulas are powerful because they are too simple to be accidental. A continuous classical orbit would not naturally produce integer patterns of this kind. The spectrum is therefore a code for the internal structure of the atom.
This page is designed to support short guided exercises on: From prisms and discrete colors to the Balmer and Rydberg formulas as empirical fingerprints of atomic structure.
- Use from this page: the definitions, physical setup, highlighted equations and conceptual links needed to start a first calculation or explanation.
- Keep in the book: complete derivations, extended historical discussion, worked solutions and the full textbook narrative remain in the original chapter and linked book resources.
- Good exercise balance: ask the student to identify assumptions, apply one relation, and interpret the result physically, without requiring material not introduced on this page.
Use these anchors to design compact exercises. The exercise should be answerable from this page plus standard algebra, while longer derivations, full worked examples and broader context should point back to the original book.
- Focus: From prisms and discrete colors to the Balmer and Rydberg formulas as empirical fingerprints of atomic structure.
- Conceptual check: state what the main result says physically before using it algebraically.
- Equation: \[\lambda=B\left(\frac{m^2}{m^2-n^2}\right),\qquad n=2,\ m>2\]
- Equation: \[\frac{1}{\lambda}=R\left(\frac{1}{n^2}-\frac{1}{m^2}\right),\qquad m>n\]
- Boundary: use this page for setup and first-step reasoning; cite the book for longer derivations, complete experimental history or solved-problem detail.
- Typical task: derive, interpret, or apply the relation above to a simple case without introducing topics outside this page.
