The photoelectric effect converts Planck's quantum into a direct energy balance. The stopping potential measures the maximum kinetic energy of emitted electrons, so \(T_{\max}=eV_c\). Einstein's step is to write the incoming light energy as \(hf\), giving \(eV_c=hf-W\).
This equation guides the interpretation. Increasing frequency raises the electron kinetic energy; increasing intensity mainly changes how many electrons are emitted. The threshold frequency appears because photons with \(hf<W\) cannot eject electrons, no matter how many of them arrive.

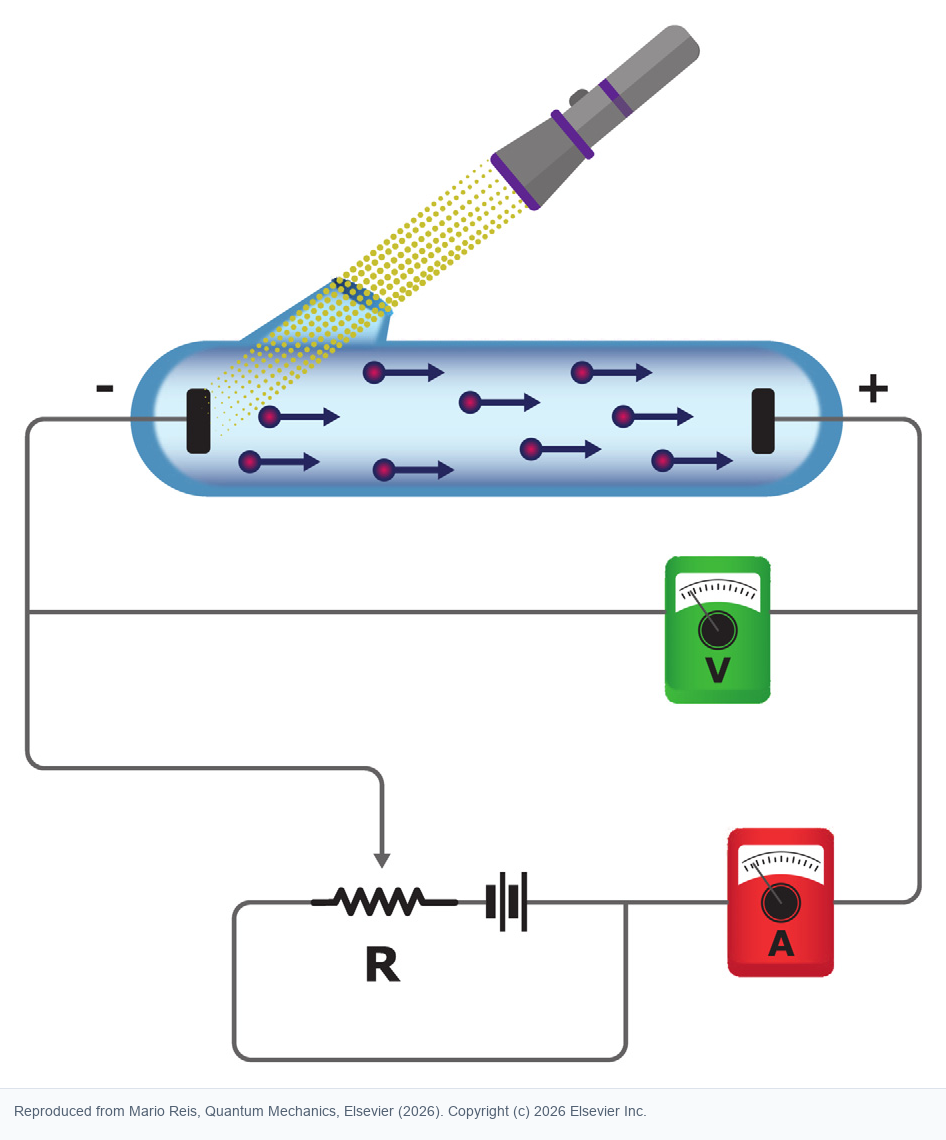

Light incident on a metal surface can eject electrons. The experiment becomes quantitative by applying a reverse voltage until even the fastest emitted electrons are stopped.
That stopping voltage is not just an electrical detail; it measures the maximum kinetic energy carried away by the electrons.
If each photon contributes one packet of energy \(hf\), part of that energy pays the work function \(W\), and the remainder becomes electron kinetic energy:
Solving for the stopping potential gives a straight line, \(V_c=(h/e)f-W/e\). The slope determines \(h/e\), while the intercept gives the work-function scale.
The energy balance explains the observations in the order they appear experimentally:
- No electrons are emitted below a threshold frequency, no matter how intense the light is.
- Above threshold, the stopping potential grows with frequency, so emitted electrons have larger maximum kinetic energy.
- At fixed frequency above threshold, intensity mainly increases the photocurrent, that is, the number of emitted electrons.
The photoelectric effect is a turning point because it treats light as localized energy packets while interference still requires wave behavior. The quantum description must therefore be richer than either classical wave optics or classical particles alone.
This page is designed to support short guided exercises on: Einstein's photon interpretation and the experimental signatures that connect light frequency with emitted electrons.
- Use from this page: the definitions, physical setup, highlighted equations and conceptual links needed to start a first calculation or explanation.
- Keep in the book: complete derivations, extended historical discussion, worked solutions and the full textbook narrative remain in the original chapter and linked book resources.
- Good exercise balance: ask the student to identify assumptions, apply one relation, and interpret the result physically, without requiring material not introduced on this page.
Use these anchors to design compact exercises. The exercise should be answerable from this page plus standard algebra, while longer derivations, full worked examples and broader context should point back to the original book.
- Focus: Einstein's photon interpretation and the experimental signatures that connect light frequency with emitted electrons.
- Conceptual check: state what the main result says physically before using it algebraically.
- Equation: \[T_{\max}=eV_c\]
- Equation: \[hf=eV_c+W\qquad \Rightarrow \qquad eV_c=hf-W\]
- Equation: \[f_0=\frac{W}{h},\qquad f>f_0\ \Rightarrow\ T_{\max}=hf-W.\]
- Boundary: use this page for setup and first-step reasoning; cite the book for longer derivations, complete experimental history or solved-problem detail.
- Typical task: derive, interpret, or apply the relation above to a simple case without introducing topics outside this page.
